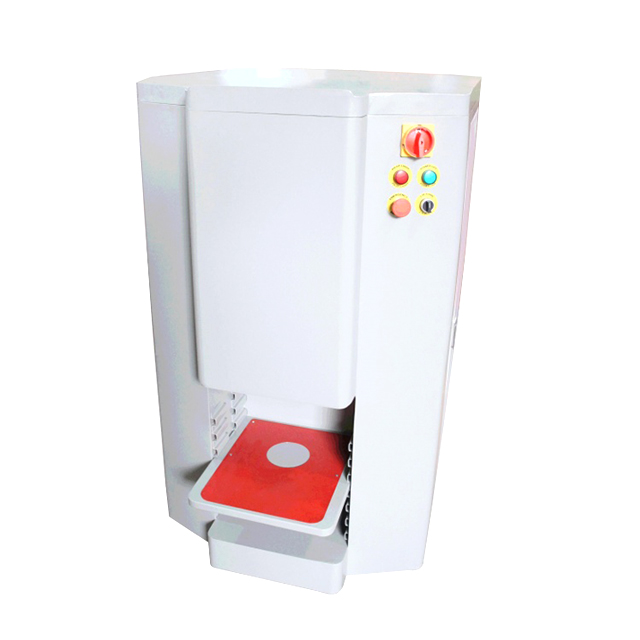

HT-10A Automatic Paint Dispenser

Availability:
Quantity:

Scope of application:
paint retailer,colorant lab and the figuratively monopolized shop

  Technical data   ﹡ Compatible with water, oil, universal and light solvent colorants .

﹡ RS-232 Port or serial USB adaptor.

﹡ Number and capacity of canister: 16 canisters x 2.3L .

﹡ Canister material: PP plastic or 304 stainless steel .

﹡ Piston pumps body material: Stainless steel .

﹡ Piston material: Double-decked PTFE .

﹡ Min. accurate discharge: 1/384 of fluid ounce or ml .

﹡ Max. pump discharge: 55ml or 2 fluid ounces per stroke .

﹡ Nozzle purging: Automatic for single or all canisters (purge volume can be adjusted).

﹡ Colorant mixing: Automatic (1 minutes to 12 hours waiting, 1 to 20 minutes mixing) or manually controlled.

﹡ Max. paint container size: 320×380mm .

﹡ Power source: 220V±10% 50HZ .

﹡ Max. power consumption: 100W (does not include computer equipments) .

﹡ Machine size: 1470(H)×830(W)×925(D)mm

﹡ Shipping size: 1495(H)×880(W)×975(D)mm

﹡ Machine weight: 176kg

﹡ Shipping weight: 240kg

Features

﹡    The dispenser software is extremely flexible, is compatible with different tinting systems and can be easily interfaced with the majority of formula books and color matching software.

﹡    Usual operations as purging, dispensing, canister filling, colorant mixing etc. are easy and very quick to perform.

﹡    Operator errors are virtually eliminate using real-time dispensing control and an accurate error handling software.

﹡    Access to last dispensed formulas, saved recipes and client files is unlimited. Formula information can be easily printed or stored for future usage.

﹡    Level of colorants in each canister can be visualized and managed at a glance.

﹡    Both the automatic purging function and “hermetic” nozzle caps assures clean and accurate dispensing all the time.

﹡    Full control on individual pumps and valves speed allows to perform accurate dispensing even with high viscosity colorants.

﹡    The base can lifter is controlled by different sensors to make the can positioning accurate and extremely safe for the operator.

﹡    The can sensor also avoids dispensing when the base can is not properly positioned.

Diagram
