Technical data ﹡ Machine size: 1060(H) X 760(W) X 825(D)mm ﹡ Packing size:1125(H) X 800(W) X 830(D)mm
﹡ Net weight：210Kg Gross weight：245Kg
﹡ Height in the drum：90mm-380mm
﹡ Applicable range: 1-35kg
﹡ Pressure: 3500N
﹡ Power: 750w
﹡ Speed: 1400r/min
﹡ Shaking frequency: 680t/min
﹡ Power supply: 220V/110V, 50/60HZ
Features
﹡ Compose with main vibrator, container press cover and microcomputer controller and so on, is suitable to 1-20L all kinds of
can/barrel, max load weight is 35kg.
﹡ With PLC microcomputer control---can set the shaking time freely by the “+” or “-“ time key, the longest time can be set is 2hours, with long use life span.
﹡ Automatic clamp and bring different pressure to bear on the can according to the can size, will not squish or stave the can.
﹡ High speed and thoroughly mixing---with up and down, front and back continuous multi-shake movement.
﹡ With the more clear functions keys on the display panel, such as the manual clamping and manual opening keys, the start,
stop, reset key. More easy to understand and operation.

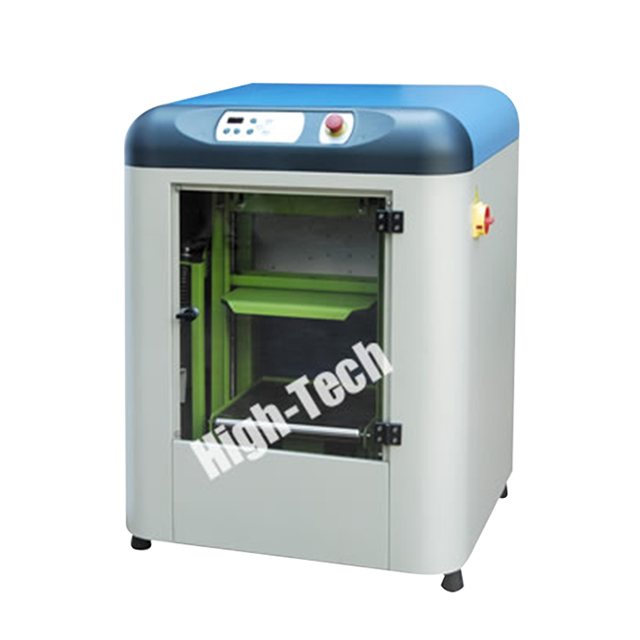

Diagram
